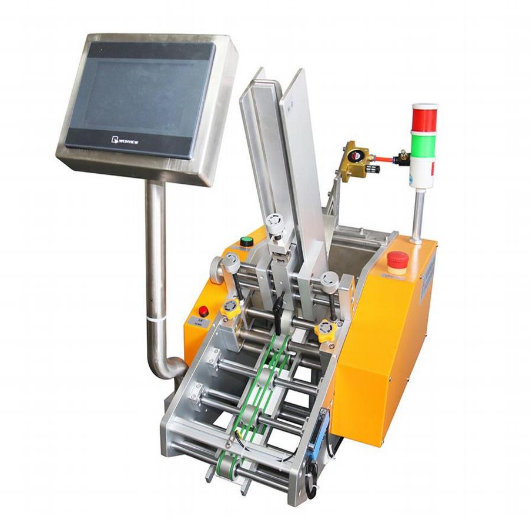

Automatic Label Stacker SWT-LS1

This machine is designed for use on production lines to automatically feed labels into boxes containing products and apply the date using an ink-type stamp in a designated area of ​​the insert.

Using an optical sensor, the stacker detects the arrival of the container into which the insert is to be

placed, applies the date to the insert using a replaceable stamp, and ejects the insert.

The stacker can adjust the size of the insert being processed and the position of the stamp.

The stand is height-adjustable and movable (2 casters with brakes).

This equipment can be used to automatically separate whole sheet-type items (such as gift cards, certificates, postcards, game cards, postcards, greeting cards, tags, name tags, packaging bags,

unfolded cardboard boxes, labels, envelopes, red envelopes, A4 paper,

warranty cards, etc.), folded items (such as instructions, advertising posters,

various folded items of various sizes), and sheet-type items (such as

instruction manuals, index cards, notepads, anime books, magazines, and various sheet-type items of various sizes) and transfer them individually to a conveyor belt. The machine can be used for

label counting and easily integrated into equipment. It can also be used on

packaging lines in conjunction with various packaging equipment, such as pillow-type packaging machines, vertical packaging machines,

case sealing machines, automatic conveyors, automatic shrink-wrappers, etc.

Key performance characteristics and features:

1. Stepper motor control with a touchscreen interface for simple and intuitive operation. Various settings and operations can be easily configured on the touchscreen.

2. The maximum stepper motor speed can reach 30 meters per minute.

3. The automatic label dispenser is connected to fully automatic

packaging equipment. The machine can quickly and automatically dispense labels depending on the number of packages.

4. The machine can dispense one or more labels, or provide continuous dispensing of

labels.

5. Photoelectric control is available. After turning on the main power switch,

the photoelectric sensor is activated, and the automatic card issuance process begins.

6. The machine is compatible with automated packaging equipment, allowing for true integration with automated packaging.

7. The system itself has numerous function settings, including the length of the pre-issued label, the number of labels issued per label, and more. Control is performed in real time.

8. Replacement of wearing parts is simple and quick.

9. The machine is equipped with a signal delay function. When changing the packaging machine speed,

it can be adjusted directly on the touchscreen without changing the machine's position

for label issuance.
